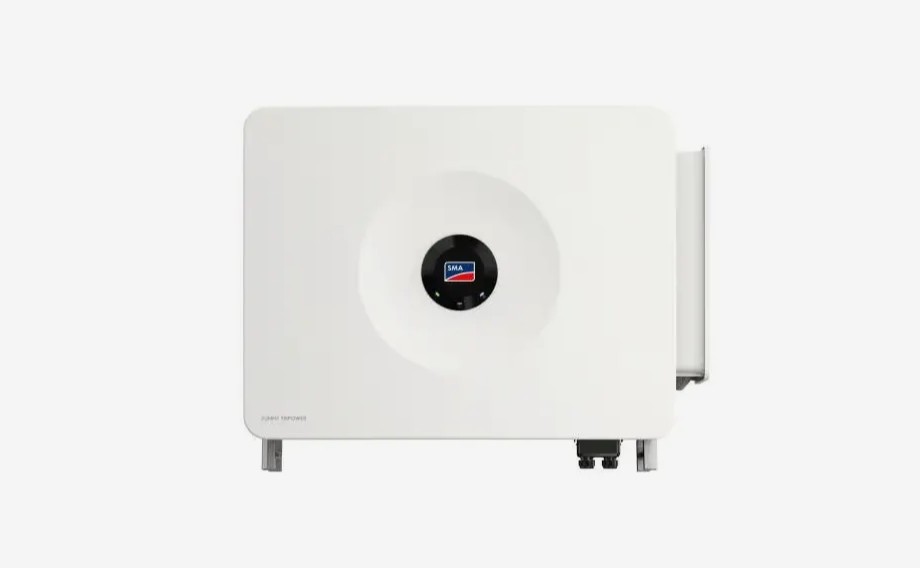

SUNNY TRIPOWER 125
The Sunny Tripower 125 is part of the SMA Commercial Energy Solution, developed to maximize the performance and profitability of commercial and industrial photovoltaic installations.
Delivering 125 kW of rated output power, it is ideally suited for decentralized PV systems ranging from large industrial rooftops to utility-scale ground-mounted power plants.
Its 12 independent MPPT trackers with 24 string inputs provide exceptional design flexibility, allowing different module orientations, inclinations and string configurations while maximizing energy production from every PV array.
Integrated SMA ShadeFix technology continuously optimizes the operating point of the PV strings, reducing production losses caused by partial shading without requiring additional hardware.
To maximize system availability, SMA Smart Connected continuously monitors inverter operation, detecting potential faults at an early stage and helping reduce maintenance costs and downtime.
Safety is enhanced through the integrated SMA ArcFix (AFCI) arc-fault protection, DC Type I+II and AC Type II surge protection, residual current monitoring and I-V curve diagnostics, ensuring reliable operation under demanding conditions.
Built-in Ethernet, Wi-Fi, SMA Speedwire, SMA Modbus and SunSpec Modbus enable seamless integration with SCADA systems, monitoring platforms, battery storage solutions and EV charging infrastructure.
With a maximum efficiency of 98.4%, IP65 protection and OptiCool active cooling technology, the Sunny Tripower 125 offers outstanding reliability and long-term performance for demanding photovoltaic projects.
Key Features
- 125 kW rated output power
- Supports up to 187.5 kWp PV array power
- 12 independent MPPTs with 24 string inputs
- Maximum efficiency of 98.4%
- SMA ShadeFix optimization technology
- SMA Smart Connected monitoring service
- SMA ArcFix integrated AFCI protection
- Ethernet, Wi-Fi, Speedwire, SMA Modbus and SunSpec Modbus
- IP65 protection rating
- OptiCool active cooling system
Applications
- Commercial PV installations
- Industrial rooftops
- Utility-scale solar plants
- Industrial self-consumption systems
- Energy communities
- Grid-connected PV plants
- Battery energy storage integration
- EV charging infrastructure
Advantages
- Maximum energy yield
- Flexible system design
- Optimized performance under partial shading
- Continuous intelligent monitoring
- Advanced electrical protection
- Easy integration with energy management systems
- Wide communication compatibility
- Reliable operation with minimal maintenance
Specifications
| Technical data – SMA Sunny Tripower 125 | |
|---|---|
| DC input | |
| Maximum PV array power | 187,500 Wp STC |
| Maximum input voltage | 1,100 V |
| MPP voltage range at rated power | 450 V – 800 V |
| Rated input voltage | 600 V |
| MPP voltage range | 180 V – 800 V |
| Minimum input voltage | 180 V |
| Initial input voltage | 200 V |
| Maximum usable input current per MPP tracker | 30 A |
| Maximum short-circuit current per MPP tracker | 40 A |
| Number of independent MPP trackers | 12 |
| Strings per MPP tracker | 2 |
| AC output | |
| Rated power | 125,000 W |
| Rated apparent power | 125,000 VA |
| Maximum apparent power | 125,000 VA |
| Nominal AC voltage | 230 V / 400 V |
| AC voltage range | 320 V – 480 V |
| Rated grid frequency | 50 Hz |
| Grid frequency range | 45 Hz – 65 Hz |
| Rated output current | 181.1 A |
| Maximum output current | 181.1 A |
| Power factor at rated power | 1 |
| Adjustable displacement power factor | 0.8 overexcited – 0.8 underexcited |
| Total harmonic distortion | < 3% at rated power |
| Feed-in phases | 3 |
| AC connection | 3-N-PE |
| Efficiency | |
| Maximum efficiency | 98.4% |
| European efficiency | 98.1% |
| Protective devices | |
| Input-side disconnection point | Included |
| Ground fault monitoring | Included |
| Grid monitoring | Included |
| DC reverse polarity protection | Included |
| AC short-circuit protection | Included |
| All-pole sensitive residual-current monitoring | Included |
| Protection class | Class I |
| Overvoltage category | AC: III / DC: II |
| Arc-fault circuit interrupter | SMA ArcFix (AFCI), compliant with IEC 63027 |
| I-V array diagnostics | Included |
| Surge protection | DC type I+II / AC type II |
| General data | |
| Dimensions (W × H × D) | 1,020 × 795 × 360 mm |
| Weight | Approx. 96 kg |
| Operating temperature range | −30°C to +60°C |
| Maximum noise emission at 1 m | < 71.1 dB(A) |
| Topology | No galvanic isolation |
| Cooling concept | OptiCool |
| Degree of protection | IP65 |
| Features, communication and mounting | |
| DC connection | Sunclix |
| AC connection | Terminal lug, up to 240 mm² |
| LED indicators | Status, fault and communication |
| Ethernet | 2 ports |
| Wi-Fi | Included |
| Communication protocols | SMA Modbus, SunSpec Modbus and Speedwire |
| Multifunction relay | Floating change-over contact |
| Digital inputs for power limitation | 4 |
| Digital inputs for quick stop | 2 |
| Mounting type | Wall mounting or rack mounting |
| Warranty and model | |
| Standard warranty | 5 years |
| Warranty extensions | 10, 15 or 20 years |
| Model | STP 125-70 |
Note: input voltages of up to 1,000 V are possible; however, this may result in reduced power output.
